CNC Sheet metal processing

CNC Laser cutting

Materials: steel, stainless steel, aluminum, brass, copper and other metal alloy sheets and tubes
Sheet thickness: up to 50mm
Sheet size: up to 6250mm x 2500mm
Tube diameter: up to 315 mm

Company has 4 CNC laser cutting machines which provides opportunity to cut metal sheets, flexibly selecting the most suitable technological solution for the customer. During work with polished and grinded materials, sheet scratches are minimized becuase all machines are equipped with automatic vacuum loaders.

CNC Laser cutting machines

Manufacturer

Laser source

Cutting power KW

Table size mm

BystronicFiber153000 x 1500

Bystronic

Fiber

66250 x 2500
BystronicCO24.43000 x 1500
BystronicCO24.43000 x 1500

Bystronic Bystar Fiber

Bystronic tube laser with rotary axis

CNC Water jet cutting

Materials: materials of any kind (metal, plastics, fiber materials, sandwich materials, rubber, stone, glass and others)
Thickness: up to 100mm
Size: up to 4000mm x 3000mm

With water cutting technology, the components are not heated, which is important in the processing of special steels and in cutting very complex configurations.

2 cutting heads give the option, details cut faster and cheaper.

CNC Water jet cutting machine

Manufacturer

Cutting heads

Table size mm

Bystronic

24000 x 3000

Bystronic water jet cutting

CNC Sheet bending

Materials: all kinds of metal alloy sheets
Size: length up to 4100 mm
Bending power: up to 250 tons
Bending technology: 3 points

Compare to welding, bending provides a lighter design of parts, at a lower cost.

CNC sheet bending machines

Manufacturer

Length in mm

Power

Programmable bending aids

CNC Management

Bystronic Hammerle

4100

225T

2 (rear)

1 (front)

23 axis
Bystronic Hammerle

3100

250T

1 ( front)

17 axis

Bystronic Hammerle bending

CNC Tube bending

Materials: steel, stainless steel, aluminum and other metal alloy pipes
Tube diameter: up to 50 mm
Length of pipe: up to 6000 mm

It is possible to create complex details with multiple bends of different angles in 3 dimensions provided by 3-axis CNC control.

CNC Tube bending machine

Manufacturer

Length mm

Max. Ø mm

Axis

TRACTO-TECHNIK

6000

50

3

Trackto Technik Tube bending

CNC Roll bending

Materials: steel, stainless steel, aluminum and other metal alloy sheets
Thickness: up to 10 mm
Width: up to 2000mm

The part will have the same rolling at the beginning and end of the sheet, Thanks to 4 roll rolling technology. Combined with CNC laser cutting equipment, it is possible to cut and roll components of complex configuration.

CNC Roll bending machine

Manufacturer

Length mm

Top roll Ø mm

Axis

ROUNDO

2000

205

12

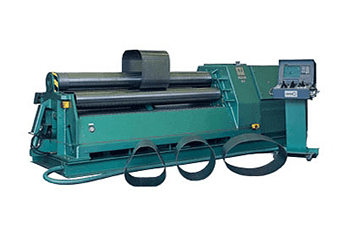

ROUNDO roll bending

ROUNDO Roll bending

NC Shearing

Materials: steel, stainless steel, aluminum and other metal alloy sheets
Sheet thickness: up to 12 mm
Sheet length: up to 3000 mm

NC shearing machine

Manufacturer

Length mm

Max thickness mm

AMADA-GS1230

3000

12

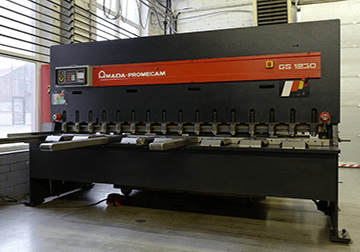

AMADA-GS1230

NC sheet shears: AMADA-GS1230
